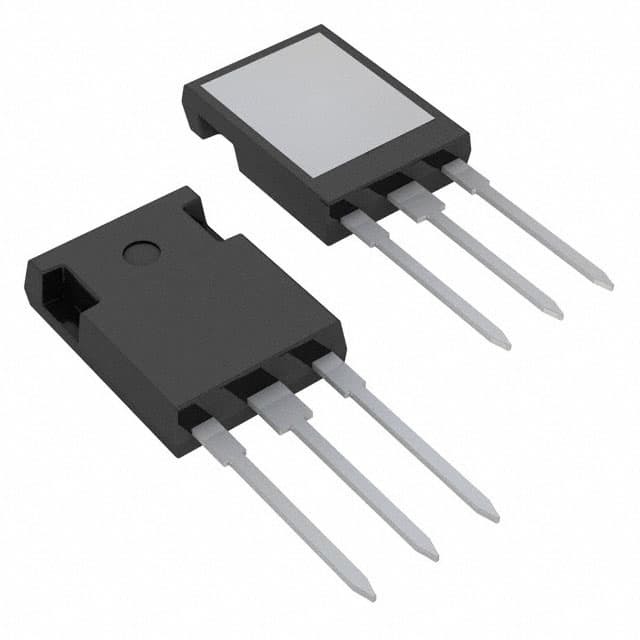

IXFR90N30

SKU: 108150

Manufacturer: Littelfuse

Trans MOSFET N-CH Si 300V 75A 3-Pin(3+Tab) ISOPLUS 247

1470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
Part Status	NRND
HTS	8541.10.00.80
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Process Technology	HiperFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	300
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	4.5
Maximum Continuous Drain Current (A)	75
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	100
Maximum Drain Source Resistance (mOhm)	36@10V
Typical Gate Charge @ Vgs (nC)	360@10V
Typical Gate Charge @ 10V (nC)	360
Typical Input Capacitance @ Vds (pF)	10000@25V
Maximum Power Dissipation (mW)	417000
Typical Fall Time (ns)	40
Typical Rise Time (ns)	55
Typical Turn-Off Delay Time (ns)	100
Typical Turn-On Delay Time (ns)	42
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	ISOPLUS 247
Pin Count	3
Terminal Form	Through Hole
Package Height	21.34(Max)
Package Length	16.13(Max)
Package Width	5.21(Max)
PCB changed	3
