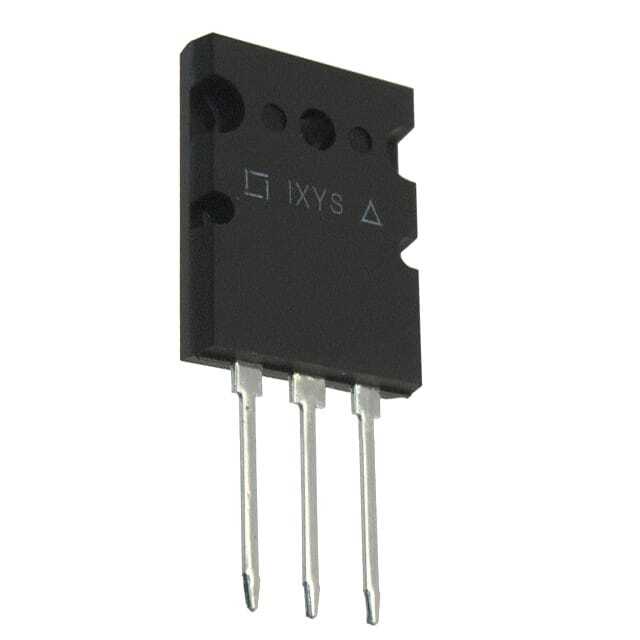

IXFK48N50

SKU: 111064

Manufacturer: Littelfuse

Trans MOSFET N-CH 500V 48A 3-Pin(3+Tab) TO-264AA

13400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	HiperFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	48
Maximum Drain Source Resistance (mOhm)	100@10V
Typical Gate Charge @ Vgs (nC)	270@10V
Typical Gate Charge @ 10V (nC)	270
Typical Input Capacitance @ Vds (pF)	8400@25V
Maximum Power Dissipation (mW)	500000
Typical Fall Time (ns)	30
Typical Rise Time (ns)	60
Typical Turn-Off Delay Time (ns)	100
Typical Turn-On Delay Time (ns)	30
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-264AA
Pin Count	3
Terminal Form	Through Hole
Package Height	26.16(Max)
Package Length	19.96(Max)
Package Width	5.13(Max)
PCB changed	3
