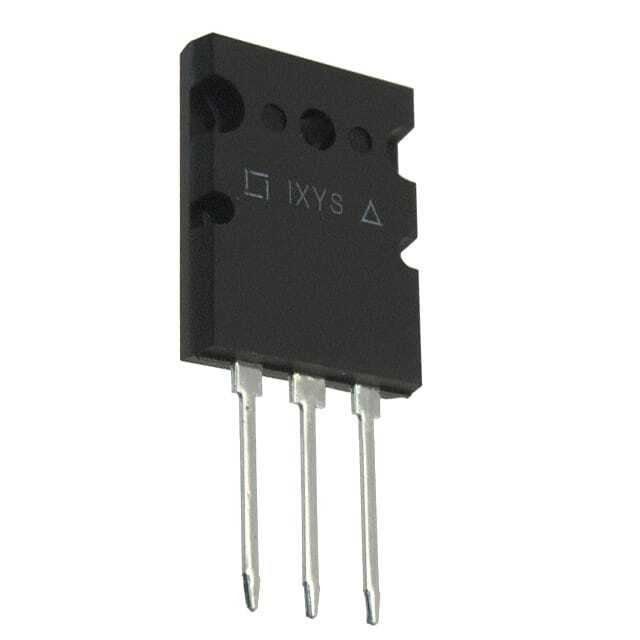

IXFK140N20P

SKU: 94005

Manufacturer: Littelfuse

Trans MOSFET N-CH 200V 140A 3-Pin(3+Tab) TO-264

320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	HiperFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	200
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	140
Maximum Drain Source Resistance (mOhm)	18@10V
Typical Gate Charge @ Vgs (nC)	240@10V
Typical Gate Charge @ 10V (nC)	240
Typical Input Capacitance @ Vds (pF)	7500@25V
Maximum Power Dissipation (mW)	830000
Typical Fall Time (ns)	90
Typical Rise Time (ns)	35
Typical Turn-Off Delay Time (ns)	150
Typical Turn-On Delay Time (ns)	30
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	TO-264
Pin Count	3
Terminal Form	Through Hole
Package Height	26.16(Max)
Package Length	19.96(Max)
Package Width	5.13(Max)
PCB changed	3
