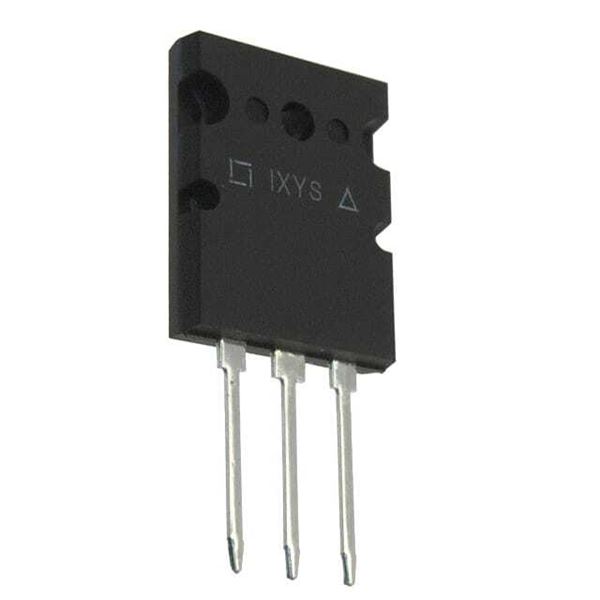

IXFK100N10

SKU: 139515

Manufacturer: Littelfuse

Trans MOSFET N-CH Si 100V 100A 3-Pin(3+Tab) TO-264AA

3710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	NRND
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Process Technology	HiperFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	100
Maximum Drain Source Resistance (mOhm)	12@10V
Typical Gate Charge @ Vgs (nC)	360@10V
Typical Gate Charge @ 10V (nC)	360
Typical Input Capacitance @ Vds (pF)	9000@25V
Maximum Power Dissipation (mW)	500000
Typical Fall Time (ns)	60
Typical Rise Time (ns)	60
Typical Turn-Off Delay Time (ns)	100
Typical Turn-On Delay Time (ns)	30
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-264AA
Pin Count	3
Terminal Form	Through Hole
Package Height	26.16(Max)
Package Length	19.96(Max)
Package Width	5.13(Max)
PCB changed	3
