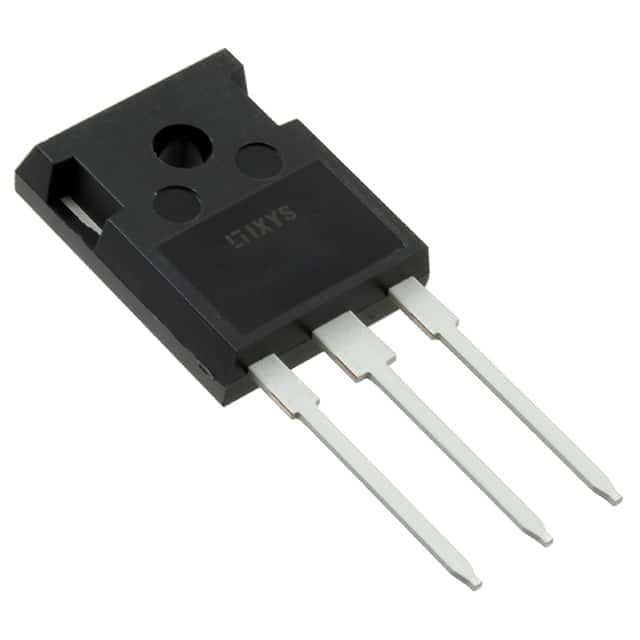

IXFH60N65X2

SKU: 153671

Manufacturer: Littelfuse

Trans MOSFET N-CH 650V 60A 3-Pin(3+Tab) TO-247AD

2180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	650
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	60
Maximum Drain Source Resistance (mOhm)	52@10V
Typical Gate Charge @ Vgs (nC)	108@10V
Typical Gate Charge @ 10V (nC)	108
Typical Input Capacitance @ Vds (pF)	6300@25V
Maximum Power Dissipation (mW)	780000
Typical Fall Time (ns)	12
Typical Rise Time (ns)	23
Typical Turn-Off Delay Time (ns)	63
Typical Turn-On Delay Time (ns)	30
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-247AD
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	21.45(Max)
Package Length	16.24(Max)
Package Width	5.3(Max)
PCB changed	3
Tab	Tab
