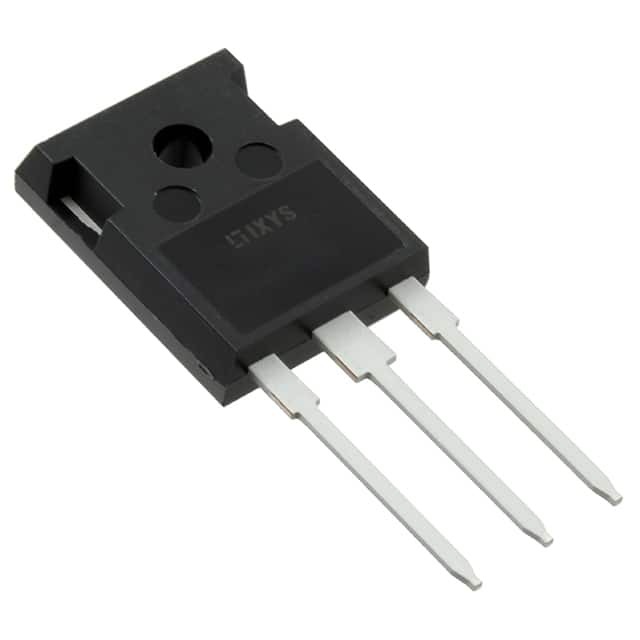

IXFH12N120P

SKU: 68718

Manufacturer: Littelfuse

Trans MOSFET N-CH 1.2KV 12A 3-Pin(3+Tab) TO-247

38680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	HiperFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	1200
Maximum Gate Source Voltage (V)	±30
Operating Junction Temperature (°C)	150
Maximum Continuous Drain Current (A)	12
Maximum Drain Source Resistance (mOhm)	1350@10V
Typical Gate Charge @ Vgs (nC)	103@10V
Typical Gate Charge @ 10V (nC)	103
Typical Input Capacitance @ Vds (pF)	5400@25V
Maximum Power Dissipation (mW)	543000
Typical Fall Time (ns)	34
Typical Rise Time (ns)	25
Typical Turn-Off Delay Time (ns)	62
Typical Turn-On Delay Time (ns)	34
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-247
Pin Count	3
Terminal Form	Through Hole
Package Height	21.46(Max)
Package Length	16.26(Max)
Package Width	5.3(Max)
PCB changed	3
