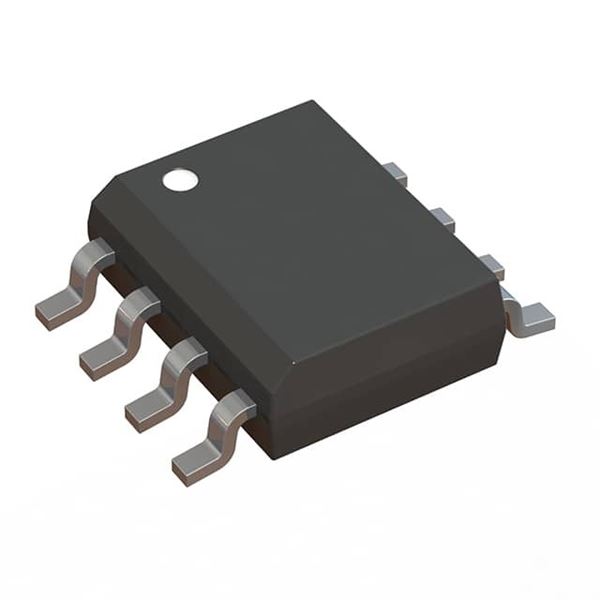

IXDF604SIATR

SKU: 75677

Manufacturer: Littelfuse

Driver 4A 2-OUT Low Side Inv/Non-Inv Automotive 8-Pin SOIC T/R

1060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Driver Type	Low Side
Driver Configuration	Inverting
Number of Drivers	2
Type	IGBT
Number of Outputs	2
Maximum Rise Time (ns)	16
Maximum Fall Time (ns)	14
Maximum Propagation Delay Time (ns)	50
Input Logic Compatibility	5V(Max)
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	35
Maximum Supply Current (mA)	3
Typical Input Low Threshold Voltage (V)	0.8(Max)
Typical Input High Threshold Voltage (V)	3(Min)
Peak Output Current (A)	4
Output Resistance (Ohm)	1.1
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	SOIC
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
