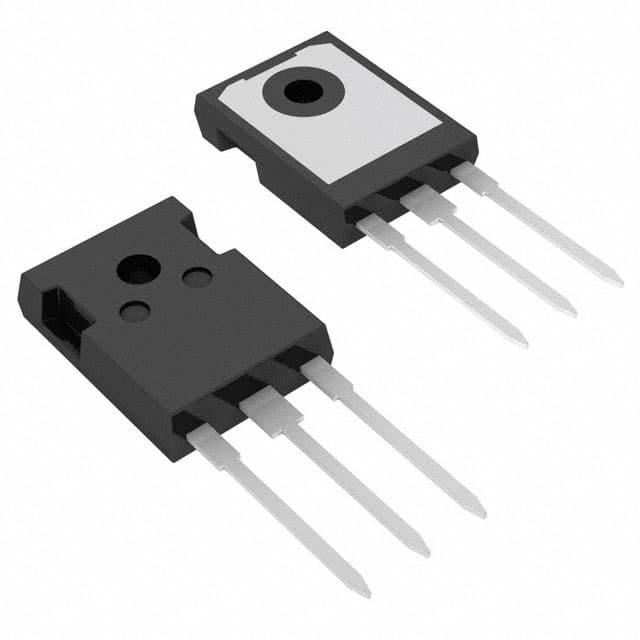

IXA45IF1200HB

SKU: 125224

Manufacturer: Littelfuse

Trans IGBT Chip N-CH 1200V 78A 325000mW 3-Pin(3+Tab) TO-247 Tube

1950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	No
PPAP	No
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±20
Collector-Emitter Voltage-Max (V)	1200
Typical Collector Emitter Saturation Voltage (V)	1.8
Maximum Continuous Collector Current (A)	78
Maximum Gate Emitter Leakage Current (uA)	0.5
Maximum Power Dissipation (mW)	325000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	3
Terminal Form	Through Hole
Package Height	21.45(Max)
Package Length	16.24(Max)
Package Width	5.3(Max)
PCB changed	3
