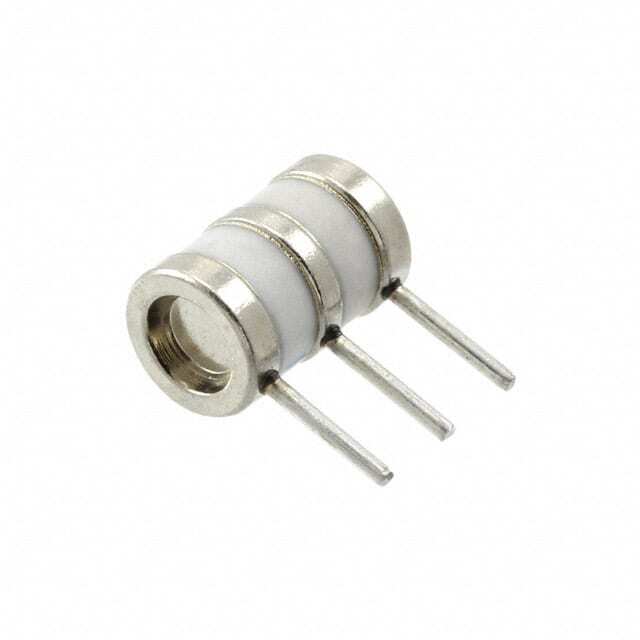

GTCR38-231M-R10

SKU: 101053

Manufacturer: Littelfuse

Gas Discharge Tubes 230VDC 10kADC 10AAC 1pF Radial SMD

1230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
DC Sparkover Voltage Tolerance	±20%
Maximum Impulse Sparkover Voltage @ 100V/s (V)	600
Maximum Impulse Sparkover Voltage @ 1KV/s (V)	700
Typical DC Sparkover Voltage @ 100V/s (V)	230
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	10
Typical AC Discharge Current @ 1s @ <= 10Times (A)	10
Minimum Insulation Resistance @ 100V (GOhm)	10
Maximum Capacitance @ 1MHz (pF)	1
Typical Impulse Life @ 10/1000us (Times)	100
Number of Electrodes	3
Terminal Form	Radial
Number of Terminals	3
Operating Temperature-Min	-40
Operating Temperature-Max	90
Lead Diameter (mm)	1
Length (mm)	10
Product Diameter (mm)	7.5
Failsafe Protection	No
