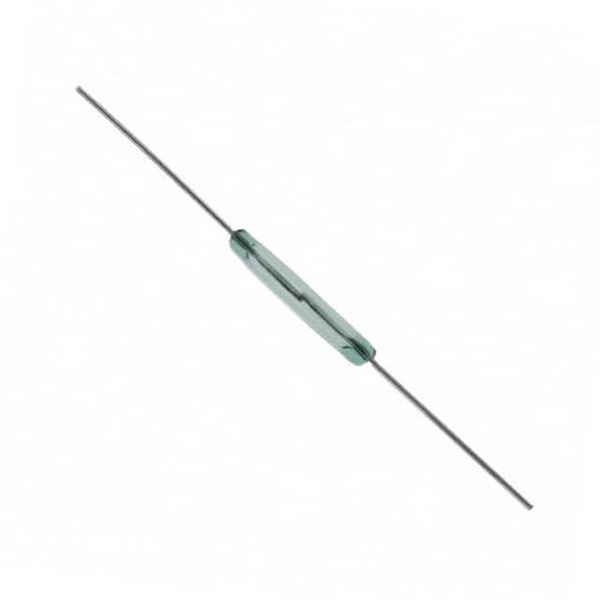

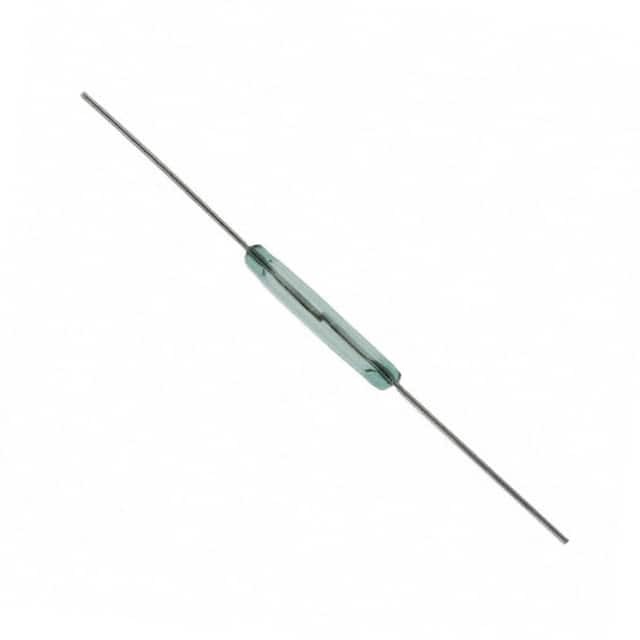

FLEX-14-25-30

SKU: 30388

Manufacturer: Littelfuse

Switch Reed N.O. 0.5A 140VAC 200VDC 10VA 0.55ms 100mOhm

4420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	No
PPAP	No
Contact Form	Form A
Switch Configuration	N.O.
Current Rating-Max(A)	0.5
Maximum Current Carry (A)	1
Maximum Power Rating (VA)	10
Device Sensitivity Range (AT)	25 to 30
Dielectric Strength	250VDC
Maximum Operation Time (ms)	0.55
Maximum Release Time (ms)	0.2
Minimum Insulation Resistance (MOhm)	10000
Maximum Contact Resistance (mOhm)	100
Terminal Form	Through Hole
Terminal Form	Axial
Seal Location	Contacts
Seal Description	Hermetic
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Bulk
Glass Length (mm)	14
Product Diameter (mm)	2.28
