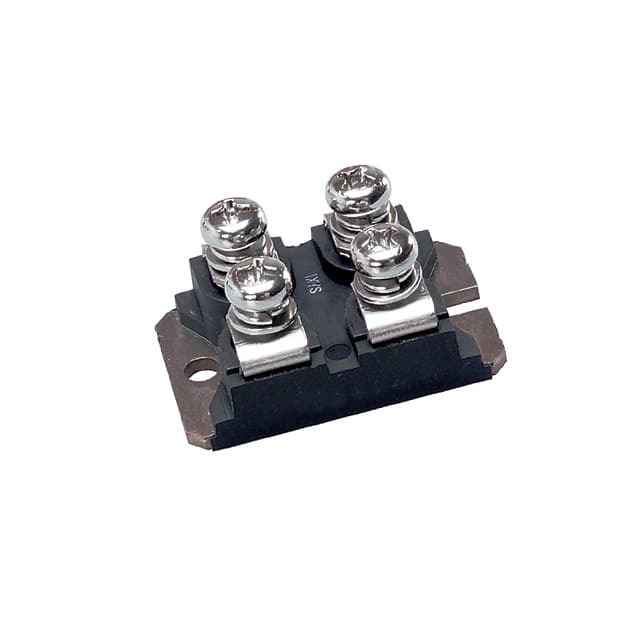

DSI2X55-12A

SKU: 54207

Manufacturer: Littelfuse

Rectifier Diode Switching 1.2KV 60A 4-Pin SOT-227B Tube

3770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Dual Parallel
Peak Reverse Repetitive Voltage (V)	1200
Maximum Continuous Forward Current (A)	60
Peak Non-Repetitive Surge Current (A)	865
Peak Forward Voltage (V)	1.54@120A
Peak Reverse Current (uA)	100
Maximum Power Dissipation (mW)	210000
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	SOT-227B
Pin Count	4
Standard Package Method	SOT
Terminal Form	Screw
Package Length	38.23(Max)
Package Width	25.42(Max)
PCB changed	4
