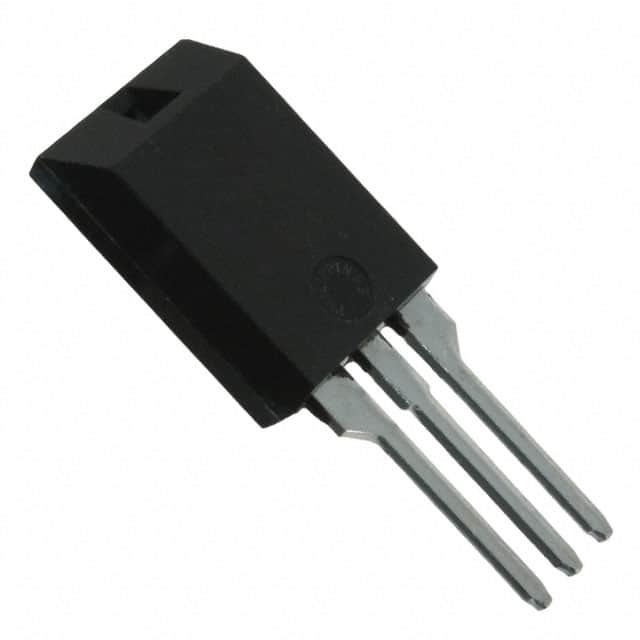

DSEC16-06AC

SKU: 16174

Manufacturer: Littelfuse

Rectifier Diode Switching 600V 8A 30ns 3-Pin(3+Tab) ISOPLUS 220

2010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	600
Maximum Continuous Forward Current (A)	8
Peak Non-Repetitive Surge Current (A)	50
Peak Forward Voltage (V)	2.1@10A
Peak Reverse Current (uA)	60
Maximum Power Dissipation (mW)	60000
Peak Reverse Recovery Time (ns)	30(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	ISOPLUS 220
Pin Count	3
Standard Package Method	ISOPLUS 220
Terminal Form	Through Hole
Package Height	16(Max)
Package Length	11(Max)
Package Width	5(Max)
PCB changed	3
