DSA20C100PN

SKU: 100948

Manufacturer: Littelfuse

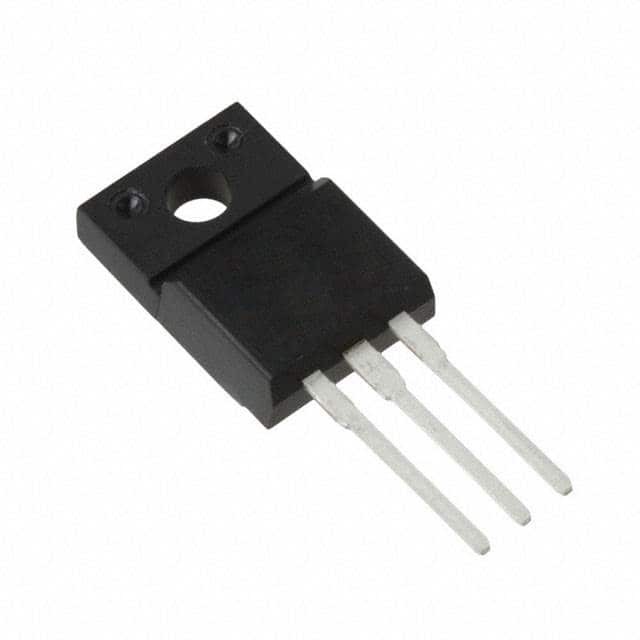

Rectifier Diode Schottky 100V 20A 3-Pin(3+Tab) TO-220FP

1190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Schottky Diode
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	100
Maximum Continuous Forward Current (A)	20
Peak Non-Repetitive Surge Current (A)	220
Peak Forward Voltage (V)	1.5
Peak Reverse Current (uA)	200
Maximum Power Dissipation (mW)	35000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	TO-220FP
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	16.07(Max)
Package Length	10.36(Max)
Package Width	4.9(Max)
PCB changed	3
Tab	Tab
