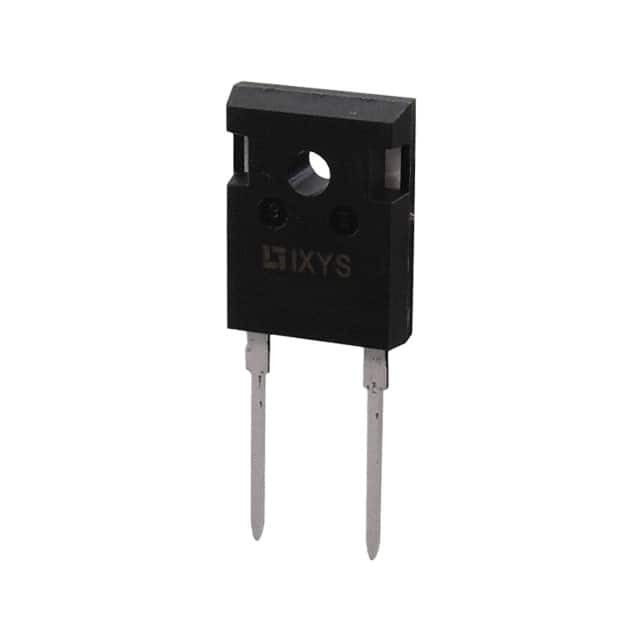

DPG30I400HA

SKU: 124681

Manufacturer: Littelfuse

Rectifier Diode Switching 400V 30A 45ns 2-Pin(2+Tab) TO-247 Tube

190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	400
Maximum Continuous Forward Current (A)	30
Peak Non-Repetitive Surge Current (A)	360
Peak Forward Voltage (V)	1.69@60A
Peak Reverse Current (uA)	1
Maximum Power Dissipation (mW)	160000
Peak Reverse Recovery Time (ns)	45(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	2
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	21.46(Max)
Package Length	16.26(Max)
Package Width	5.3(Max)
PCB changed	2
Tab	Tab
