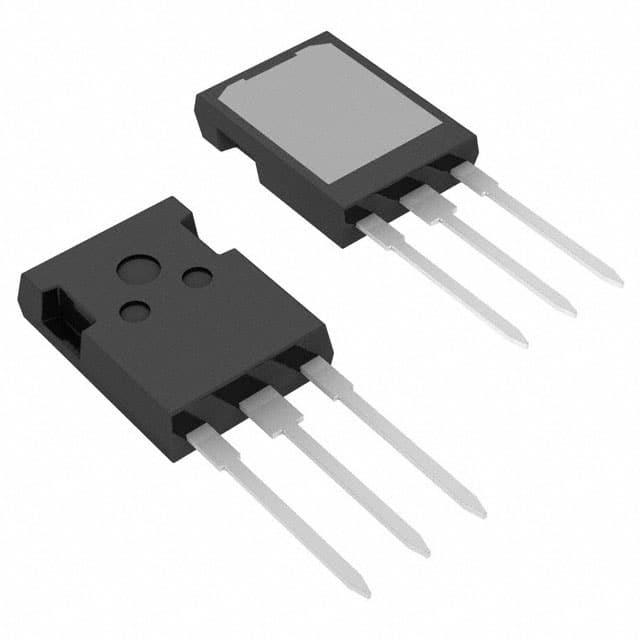

CS60-16IO1

SKU: 46771

Manufacturer: Littelfuse

SCR Diode 1600V 75A(RMS) 1510A 3-Pin(3+Tab) PLUS 247

4010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	1000
Maximum Rate of Rise of On-State Current (A/us)	500
Maximum Gate Trigger Voltage (V)	1.5
Maximum Gate Trigger Current (mA)	100
Surge Current Rating (A)	1510
Maximum Holding Current (mA)	200
Repetitive Peak Reverse Voltage (V)	1600
Maximum Gate Peak Inverse Voltage (V)	10
Peak On-State Voltage (V)	1.44@120A
Repetitive Peak Forward Blocking Voltage (V)	1600
Rated Average On-State Current (A)	60
RMS On-State Current (A)	75
Repetitive Peak Off-State Current (mA)	0.2
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	140
Original Package	PLUS 247
Pin Count	3
Standard Package Method	PLUS 247
Terminal Form	Through Hole
Package Height	21.34(Max)
Package Length	16.13(Max)
Package Width	5.21(Max)
PCB changed	3
