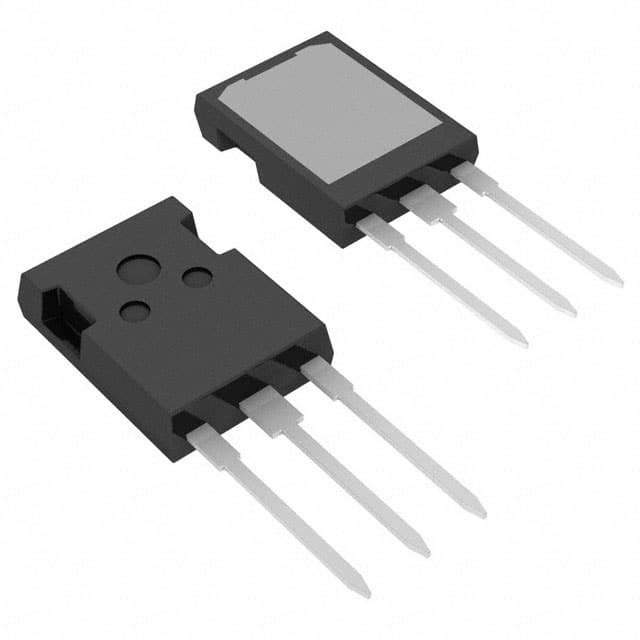

CS60-12IO1 Littelfuse

CS60-12IO1

SKU: 60946

Manufacturer: Littelfuse

Thyristor SCR 1.4KV 1.6KA 3-Pin(3+Tab) PLUS 247

Download sample

Request Free Samples

130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Gate Trigger Voltage (V)	1.5
Maximum Gate Trigger Current (mA)	100
Surge Current Rating (A)	1510
Maximum Holding Current (mA)	200
Repetitive Peak Reverse Voltage (V)	1400
Maximum Gate Peak Inverse Voltage (V)	10
Peak On-State Voltage (V)	1.4@100A
Repetitive Peak Forward Blocking Voltage (V)	1400
Rated Average On-State Current (A)	48
Repetitive Peak Off-State Current (mA)	10
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	PLUS 247
Pin Count	3
Standard Package Method	PLUS 247
Terminal Form	Through Hole
Package Height	21.34(Max)
Package Length	16.13(Max)
Package Width	5.21(Max)
PCB changed	3
