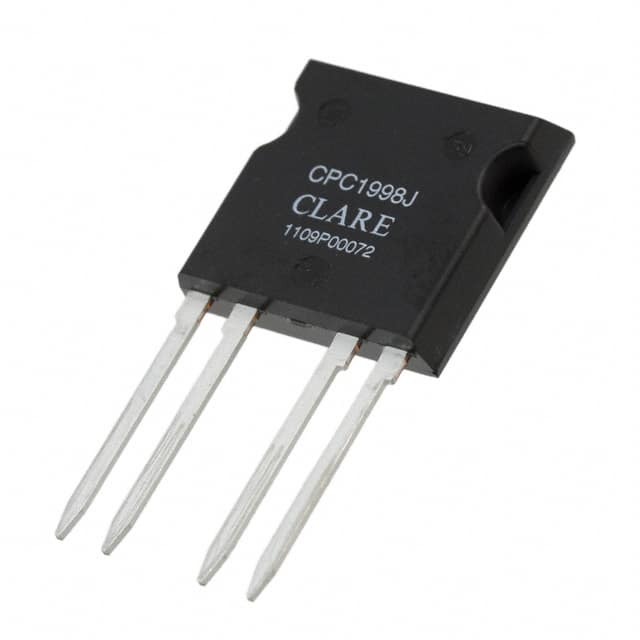

CPC1998J

SKU: 44438

Manufacturer: Littelfuse

Solid State Relay 50mA 1.5V DC-IN 50A 800V AC-OUT 4-Pin i4-PAC Tube

2600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	No
PPAP	No
Input Type	DC
Minimum Input Voltage (V)	0.9
Maximum Input Voltage (V)	1.5
Maximum Input Current (mA)	50
Maximum Output Voltage (V)	800
Maximum Output Current (A)	50(RMS)
Output Device	SCR
Output Type	AC
Minimum Load Current (mA)	100(RMS)
I/O Isolation Voltage (V)	2500(RMS)
Peak Non-Repetitive Surge Current (A)	150
Maximum Off-State Leakage Current (uA)	100
Typical Input to Output Capacitance (pF)	3(Max)
Maximum Power Dissipation (mW)	3500
Maximum Turn-On Time (ms)	8.33
Maximum Turn-Off Time (ms)	8.33
Circuit Arrangement	1 Form A
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Standard Package Method	i4-PAC
Original Package	i4-PAC
Pin Count	4
Terminal Form	Through Hole
Package Height	20.88
Package Length	19.91
Package Width	5.03
