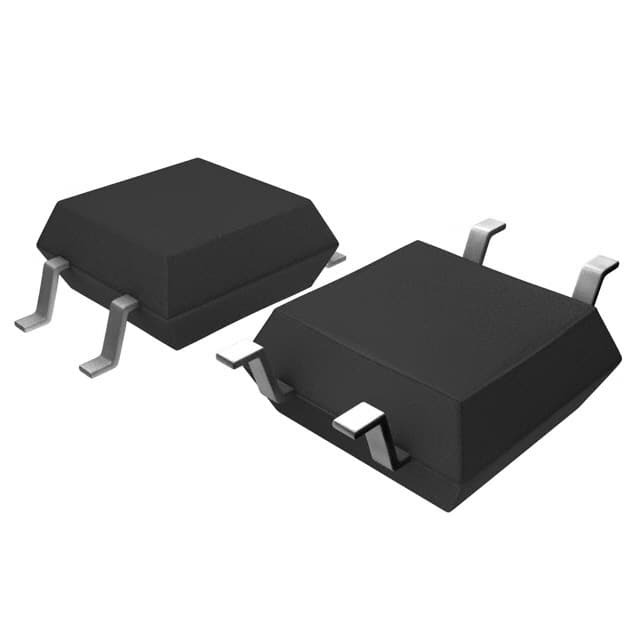

CPC1001NTR

SKU: 131615

Manufacturer: Littelfuse

Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SOP T/R

1140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	1500
Operating Temperature-Min	-40
Operating Temperature-Max	85
Maximum Forward Voltage (V)	1.4
Maximum Current Transfer Ratio (%)	800
Standard	CSA
Maximum Collector-Emitter Saturation Voltage (mV)	300
Maximum Power Dissipation (mW)	150
Minimum Forward Voltage (V)	0.9
Typical Forward Voltage (V)	1.2
Maximum Reverse Voltage (V)	5
Maximum Forward Current (mA)	0.2
Packing Method	Tape and Reel
Minimum Current Transfer Ratio (%)	100
Current Transfer Ratio Test Current (mA)	0.2
Standard Package Method	SOP
Pin Count	4
Original Package	SOP
Terminal Form	Surface Mount
Package Height	2.08(Max)
Package Length	4.09
Package Width	3.81
PCB changed	4
