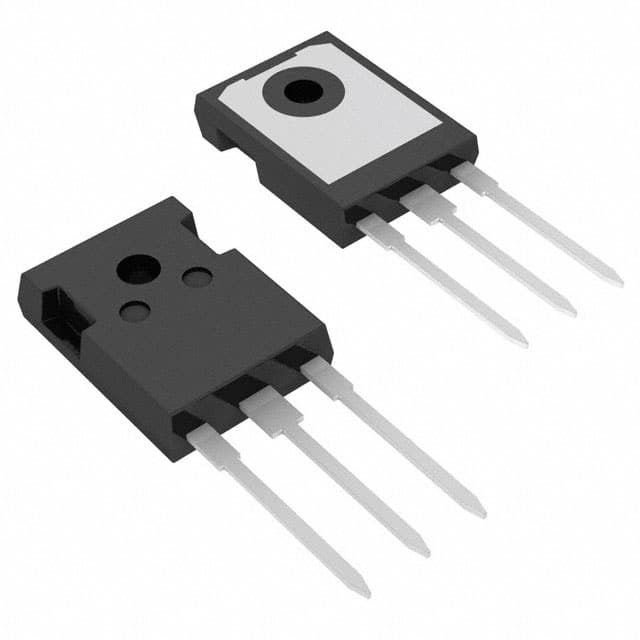

CLA30E1200HB

SKU: 88980

Manufacturer: Littelfuse

SCR Diode 1200V 47A(RMS) 325A 3-Pin(3+Tab) TO-247 Tube

1790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	500
Maximum Rate of Rise of On-State Current (A/us)	500
Maximum Gate Trigger Voltage (V)	1.3
Maximum Gate Trigger Current (mA)	28
Surge Current Rating (A)	325
Maximum Holding Current (mA)	60
Repetitive Peak Reverse Voltage (V)	1200
Peak On-State Voltage (V)	1.56@60A
Repetitive Peak Forward Blocking Voltage (V)	1200
Rated Average On-State Current (A)	30
RMS On-State Current (A)	47
Repetitive Peak Off-State Current (mA)	0.01
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	TO-247
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	21.45(Max)
Package Length	16.24(Max)
Package Width	5.3(Max)
PCB changed	3
Tab	Tab
