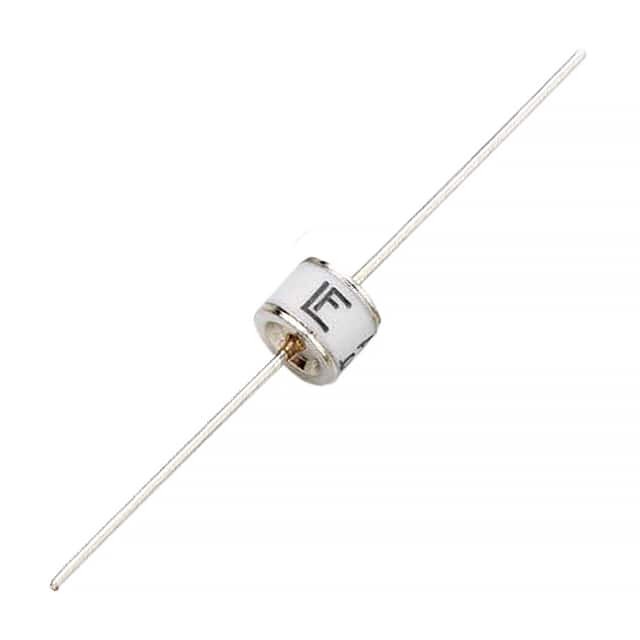

CG32.5LTR

SKU: 32487

Manufacturer: Littelfuse

Gas Discharge Tubes 2500VDC 10kADC 300AAC 1pF Axial Thru-Hole

3010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Maximum Impulse Sparkover Voltage @ 100V/s (V)	3750
Typical DC Sparkover Voltage @ 100V/s (V)	2500
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	10
Typical AC Discharge Current @ 1s @ <= 10Times (A)	300(Max)
Minimum Insulation Resistance @ 100V (GOhm)	10
Maximum Capacitance @ 1MHz (pF)	1
Typical Impulse Life @ 10/1000us (Times)	500(Min)
Number of Electrodes	2
Terminal Form	Axial
Number of Terminals	2
Operating Temperature-Min	-40
Packing Method	Tape and Reel
Operating Temperature-Max	125
Lead Diameter (mm)	0.81
Length (mm)	6
Depth (mm)	9.14(Max)
Height (mm)	9.14(Max)
Product Diameter (mm)	8
Failsafe Protection	No
