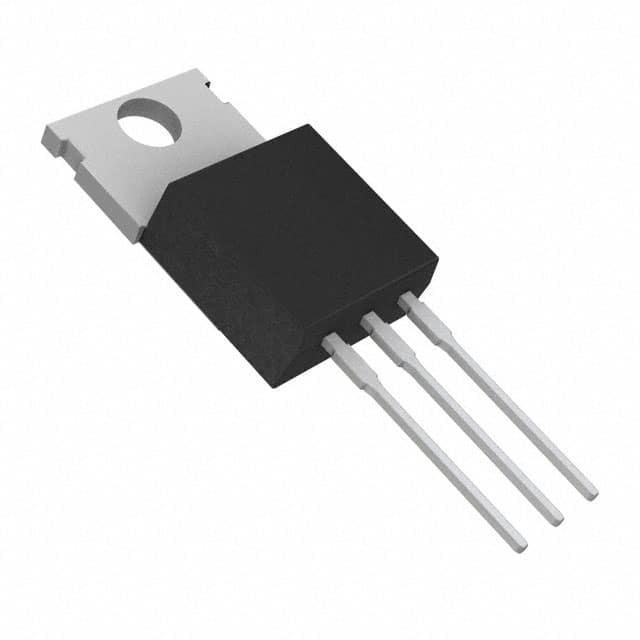

BTB12-600BW3G Littelfuse

BTB12-600BW3G

SKU: 30147

Manufacturer: Littelfuse

TRIAC 600V 120A 3-Pin(3+Tab) TO-220AB

Download sample

Request Free Samples

100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Rate of Rise of On-State Current (A/us)	50
Maximum Gate Trigger Voltage (V)	1.7
Maximum Gate Trigger Current (mA)	50
Surge Current Rating (A)	125
Maximum Holding Current (mA)	50
Repetitive Peak Reverse Voltage (V)	600
Peak On-State Voltage (V)	1.55@17A
Repetitive Peak Forward Blocking Voltage (V)	600
Repetitive Peak Off-State Current (mA)	0.005
AC Switch	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	TO-220AB
Pin Count	3
Terminal Form	Through Hole
Package Height	9.28(Max)
Package Length	10.28(Max)
Package Width	4.82(Max)
PCB changed	3
