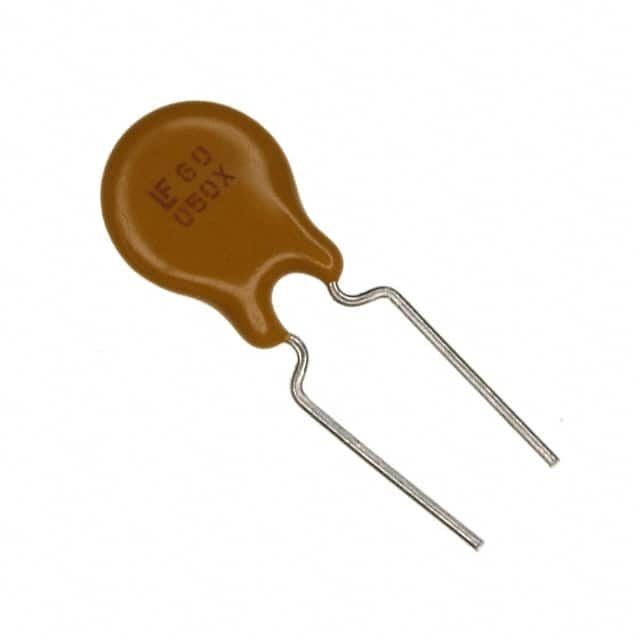

60R050XPR

SKU: 24348

Manufacturer: Littelfuse

PTC Resettable Fuse 0.5A(hold) 1A(trip) 60VDC 40A 0.77W 4s 0.5Ohm Radial 7.9 X 3.1mm Ammo Automotive

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	Unknown
PPAP	Unknown
Voltage Rating-Max	60VDC
Current Rating-Max(A)	40
Hold Current (A)	0.5
Trip Current (A)	1
Minimum Initial Resistance (Ohm)	0.5
Maximum Post Trip Resistance (Ohm)	1.17
Typical Power Dissipation (W)	0.77
Maximum Trip Time (s)	4@2.5A
Terminal Form	Radial
Terminal Pitch (mm)	5.1(Typ)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Ammo
Size (mm)	7.9 X 3.1
Wire Form	Inside Crimp Standoff
Lead Diameter (mm)	0.51
Product Diameter (mm)	7.9(Max)
Depth (mm)	3.1(Max)
Seated Plane Height (mm)	13.7(Max)
