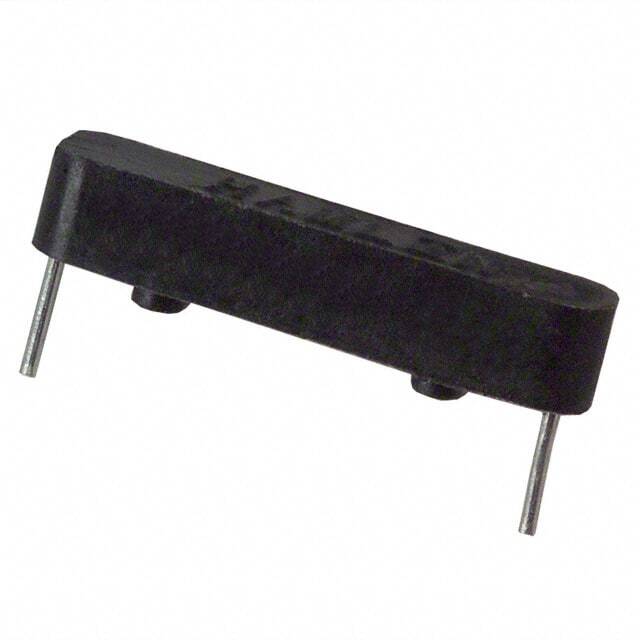

59045-010

SKU: 114677

Manufacturer: Littelfuse

Switch Reed N.O. 0.5A 200VDC 10VA 1ms 200mOhm

1600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8536.41.00.60
Automotive	No
PPAP	No
Contact Form	Form A
Switch Configuration	N.O.
Current Rating-Max(A)	0.5
Maximum Current Carry (A)	1
Maximum Power Rating (VA)	10
Device Sensitivity Range (AT)	10 to 20
Dielectric Strength	250VDC
Maximum Operation Time (ms)	1
Maximum Release Time (ms)	1
Minimum Insulation Resistance (MOhm)	10000
Maximum Contact Resistance (mOhm)	200
Terminal Form	Through Hole
Terminal Form	PC Pins
Seal Description	Hermetic
Operating Temperature-Min	-40
Operating Temperature-Max	105
