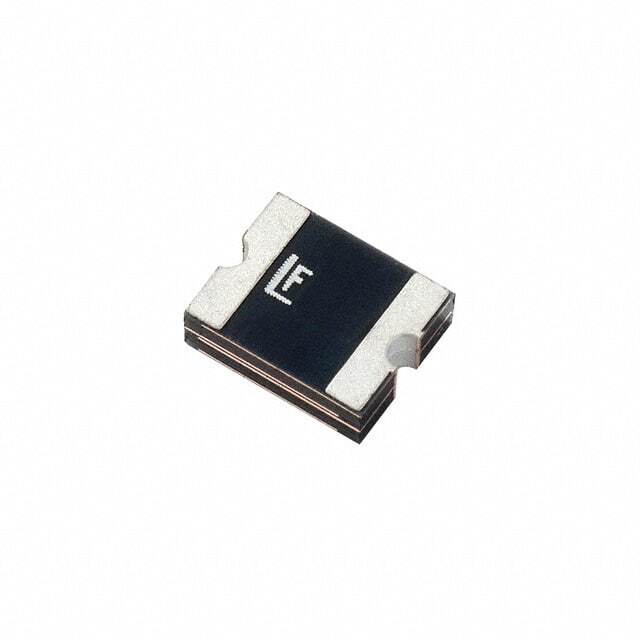

2016L300/16MR

SKU: 135927

Manufacturer: Littelfuse

PTC Resettable Fuse 3A(hold) 5A(trip) 16VDC 40A 1.6W 10s 0.015Ohm SMD Solder Pad 2016 5.44 X 4.43 X 1.6mm T/R

1830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8536.10.00.40
Voltage Rating-Max	16VDC
Current Rating-Max(A)	40
Hold Current (A)	3
Trip Current (A)	5
Minimum Initial Resistance (Ohm)	0.015
Maximum Post Trip Resistance (Ohm)	0.18
Typical Power Dissipation (W)	1.6
Maximum Trip Time (s)	10@8A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	5.44 X 4.43 X 1.6
Length (mm)	5.44(Max)
Depth (mm)	4.43(Max)
Height (mm)	1.6(Max)
Case Code - in	2016
