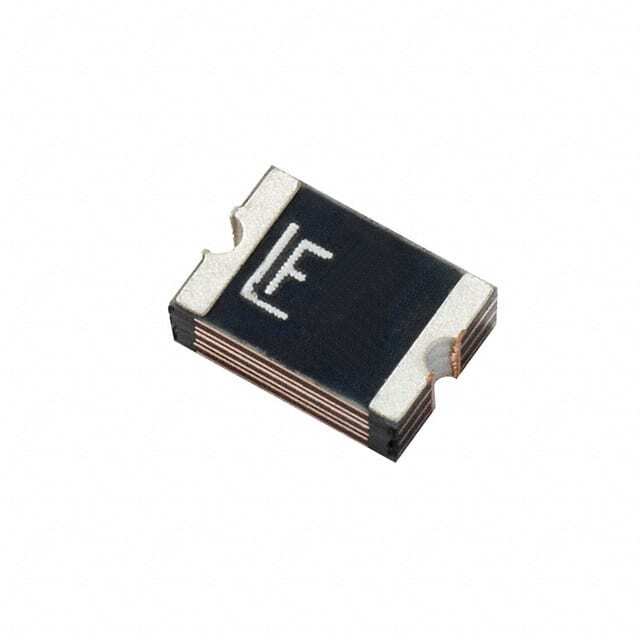

1812L160/12DR

SKU: 43965

Manufacturer: Littelfuse

PTC Resettable Fuse 1.6A(hold) 2.8A(trip) 12VDC 100A 0.8W 1s 0.03Ohm SMD Solder Pad 1812 T/R

610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	No
PPAP	No
Voltage Rating-Max	12VDC
Current Rating-Max(A)	100
Hold Current (A)	1.6
Trip Current (A)	2.8
Minimum Initial Resistance (Ohm)	0.03
Maximum Post Trip Resistance (Ohm)	0.1
Typical Power Dissipation (W)	0.8
Maximum Trip Time (s)	1@8A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	4.73 X 3.41 X 1.25
Length (mm)	4.73(Max)
Depth (mm)	3.41(Max)
Height (mm)	1.25(Max)
Case Code - in	1812
