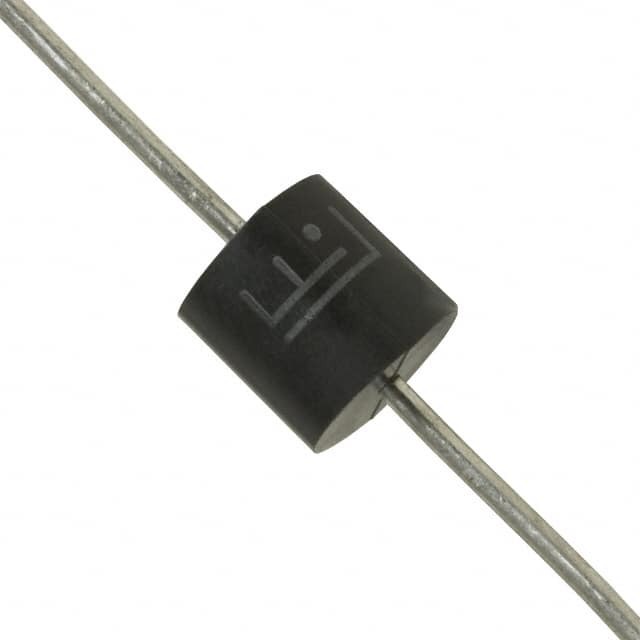

15KP30CA

SKU: 8874

Manufacturer: Littelfuse

TVS Diode Single Bi-Dir 30V 15KW Automotive 2-Pin Case P-600

2030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	33.3
Maximum Clamping Voltage (V)	50.7
Maximum Reverse Stand-Off Voltage (V)	30
Maximum Peak Pulse Current (A)	296
Maximum Reverse Leakage Current (uA)	30
Test Current (mA)	5
Peak Pulse Power Dissipation (W)	15000(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	175
Pin Count	2
Standard Package Method	Case P-600
Original Package	Case P-600
Diameter	9.1(Max)
Terminal Form	Through Hole
Package Length	9.1(Max)
PCB changed	2
