1206L005/60WR

SKU: 15613

Manufacturer: Littelfuse

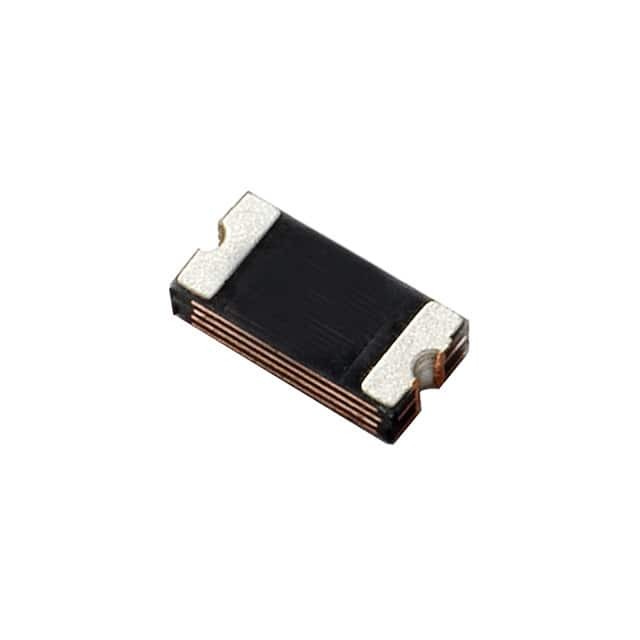

PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 60VDC 10A 0.6W 1.5s 3.6Ohm SMD Solder Pad 1206 T/R

3290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	No
PPAP	No
Voltage Rating-Max	60VDC
Current Rating-Max(A)	10
Hold Current (A)	0.05
Trip Current (A)	0.15
Minimum Initial Resistance (Ohm)	3.6
Maximum Post Trip Resistance (Ohm)	20
Typical Power Dissipation (W)	0.6
Maximum Trip Time (s)	1.5@0.25A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	3.4 X 1.8 X 1.25
Length (mm)	3.4(Max)
Depth (mm)	1.8(Max)
Height (mm)	1.25(Max)
Case Code - in	1206
