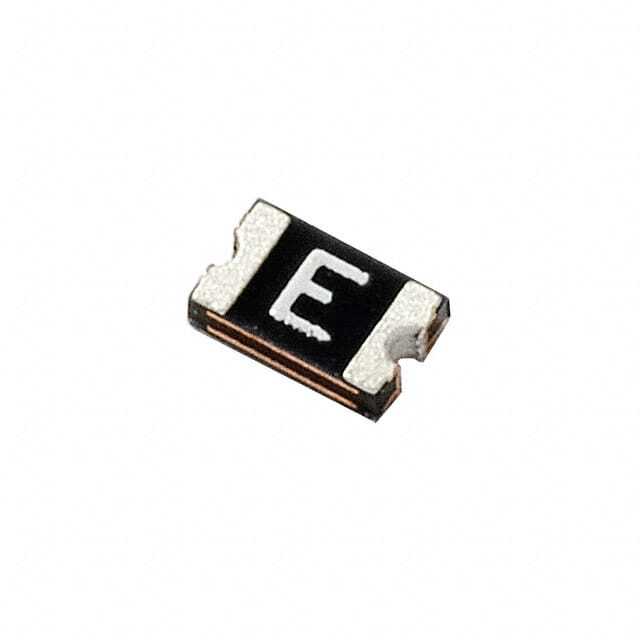

0805L005/30YR

SKU: 107444

Manufacturer: Littelfuse

PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 30VDC 40A 0.5W 1.5s 3.6Ohm SMD Solder Pad 0805 T/R

2950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8535.10.00.40
Voltage Rating-Max	30VDC
Current Rating-Max(A)	40
Hold Current (A)	0.05
Trip Current (A)	0.15
Minimum Initial Resistance (Ohm)	3.6
Maximum Post Trip Resistance (Ohm)	20
Typical Power Dissipation (W)	0.5
Maximum Trip Time (s)	1.5@0.25A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	2.2 X 1.5 X 1.25
Length (mm)	2.2(Max)
Depth (mm)	1.5(Max)
Height (mm)	1.25(Max)
Case Code - in	0805
