0603SFV125F/32-2

SKU: 93266

Manufacturer: Littelfuse

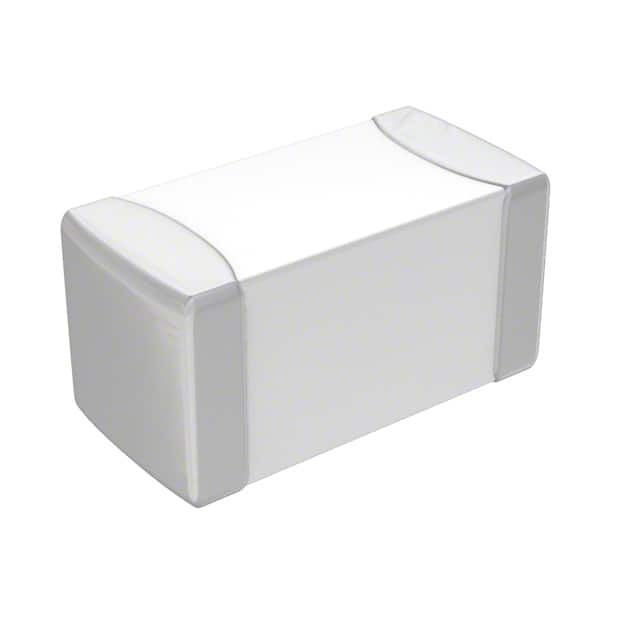

Fuse Chip Very Fast Acting 1.3A 32V SMD Solder Pad 0603 1.75 X 0.95 X 0.48mm Ceramic T/R Automotive

3530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Unknown
PPAP	Unknown
Type	Chip
Acting	Very Fast
Application	Cell Phones
Fuse Size (mm)	1.75 X 0.95 X 0.48
Current Rating (A)	1.3
Voltage Rating (V)	32
Maximum DC Voltage Rating (V)	32
Breaking Capacity @ Rated Voltage (A)	35@32VDC
Typical Melting I2t (A²S)	0.063
Typical Cold Resistance (Ohm)	0.205
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Depth (mm)	0.95(Max)
Length (mm)	1.75(Max)
Height (mm)	0.48(Max)
Fuse Body Material	Ceramic
Terminal Form	Surface Mount
