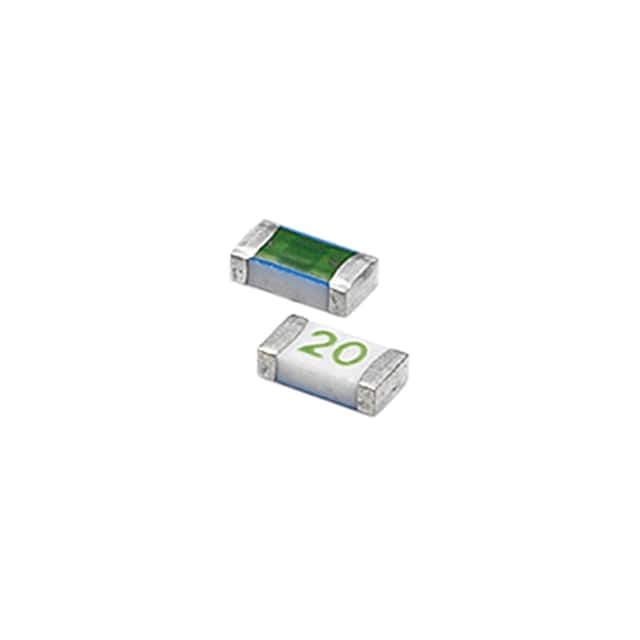

0501010.WRA Littelfuse

0501010.WRA

SKU: 15595

Manufacturer: Littelfuse

Fuse Chip Fast Acting 10A 32V SMD Solder Pad 1206 3.2 X 1.63 X 0.835mm Ceramic

Request Free Samples

3920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Type	Chip
Acting	Fast
Application	Cluster
Fuse Size (mm)	3.2 X 1.63 X 0.835
Current Rating (A)	10
Voltage Rating (V)	32
Maximum DC Voltage Rating (V)	32
Maximum Power Dissipation (W)	0.4407(Nom)
Typical Melting I2t (A²S)	10.385
Typical Cold Resistance (Ohm)	0.00362
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Depth (mm)	1.63
Length (mm)	3.2
Height (mm)	0.835
Fuse Body Material	Ceramic
Terminal Form	Surface Mount
