04611.25ER

SKU: 7339

Manufacturer: Littelfuse

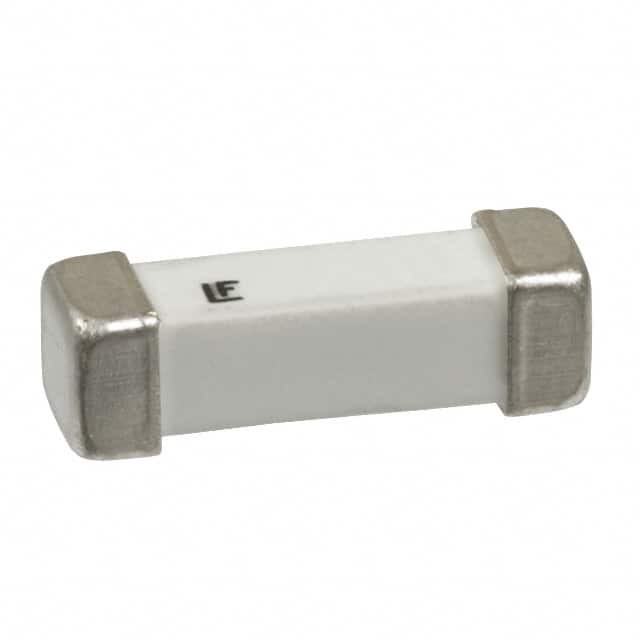

Fuse Chip Slow Blow Acting 1.25A 600V SMD Solder Pad 10.1 X 3.12mm Ceramic T/R CSA

10600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Chip
Acting	Slow Blow
Application	Baystations T1/E/J1,T3(DS3) Trunk Cards
Fuse Size (mm)	10.1 X 3.12
Current Rating (A)	1.25
Voltage Rating (V)	600
Maximum AC Voltage Rating (V)	600
Breaking Capacity @ Rated Voltage (A)	60@600VAC
Typical Melting I2t (A²S)	16.5
Typical Cold Resistance (Ohm)	0.11
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Depth (mm)	3.12
Length (mm)	10.1
Height (mm)	3.12
Fuse Body Material	Ceramic
