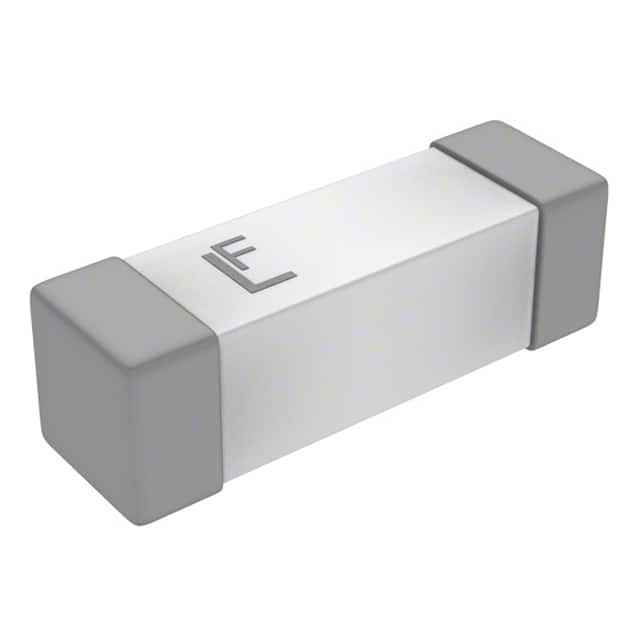

0456040.DR

SKU: 7107

Manufacturer: Littelfuse

Fuse Chip 40A 72V SMD Solder Pad 12.5 X 4.45mm Ceramic T/R CSA/TUV/cULus

10130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	No
PPAP	No
Type	Chip
Acting	Very Fast
Application	Automotive
Fuse Size (mm)	12.5 X 4.45
Current Rating (A)	40
Voltage Rating (V)	72
Maximum AC Voltage Rating (V)	72
Maximum DC Voltage Rating (V)	72
Breaking Capacity @ Rated Voltage (A)	180@72VDC
Typical Melting I2t (A²S)	191
Typical Cold Resistance (Ohm)	0.00105
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Depth (mm)	4.445
Length (mm)	12.5
Height (mm)	4.445
Fuse Body Material	Ceramic
