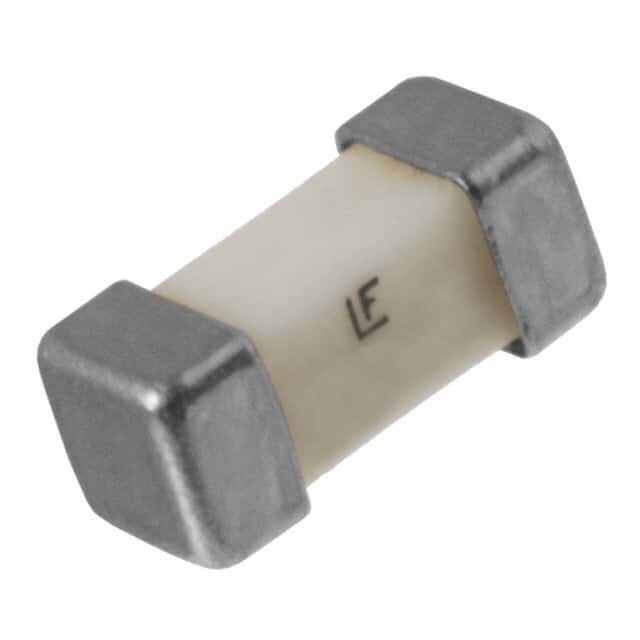

045106.3MRSN

SKU: 5201

Manufacturer: Littelfuse

Fuse Chip Very Fast Acting 6.3A 125V SMD Solder Pad 2410 Ceramic T/R CSA/PSE/UL

Request Free Samples

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Overview
Specifications
Contact Us

Littelfuse 045106.3MRSN is available at WIN SOURCE. Please review product page below for detailed information, including 045106.3MRSN price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 045106.3MRSN to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	No
PPAP	No
Type	Chip
Acting	Very Fast
Application	Automotive
Fuse Size (mm)	6.1 X 2.69
Current Rating (A)	6.3
Voltage Rating (V)	125
Maximum AC Voltage Rating (V)	125
Maximum DC Voltage Rating (V)	125
Breaking Capacity @ Rated Voltage (A)	300@32VDC
Typical Melting I2t (A²S)	9.17
Typical Cold Resistance (Ohm)	0.0096
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Depth (mm)	2.69
Length (mm)	6.1
Height (mm)	2.69
Fuse Body Material	Ceramic
Terminal Form	Surface Mount
