0440003.WR Littelfuse

0440003.WR

SKU: 8615

Manufacturer: Littelfuse

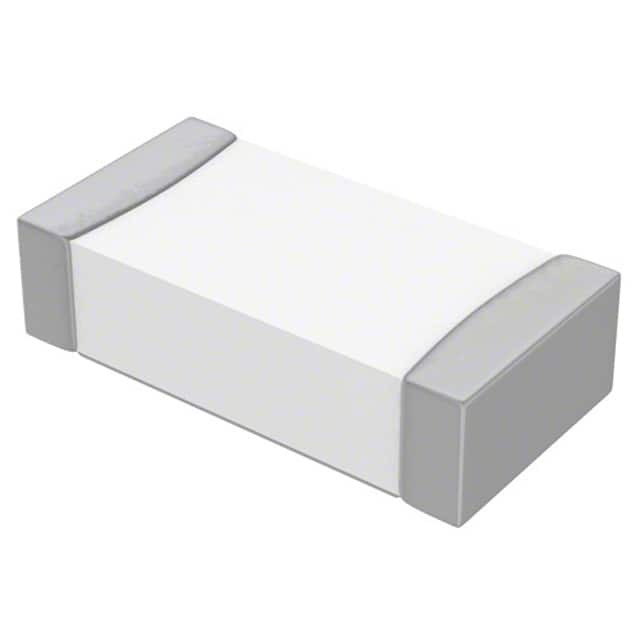

Fuse Chip Fast Acting 3A 32V SMD Solder Pad 1206 Ceramic T/R CSA/UL

Request Free Samples

2540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	No
PPAP	No
Type	Chip
Acting	Fast
Application	Automotive Electronics
Fuse Size (mm)	3.2 X 1.63 X 0.82
Current Rating (A)	3
Voltage Rating (V)	32
Maximum AC Voltage Rating (V)	32
Maximum DC Voltage Rating (V)	32
Maximum Power Dissipation (W)	0.223(Nom)
Typical Melting I2t (A²S)	1.232
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Depth (mm)	1.63
Length (mm)	3.2
Height (mm)	0.82
Fuse Body Material	Ceramic
Terminal Form	Surface Mount
