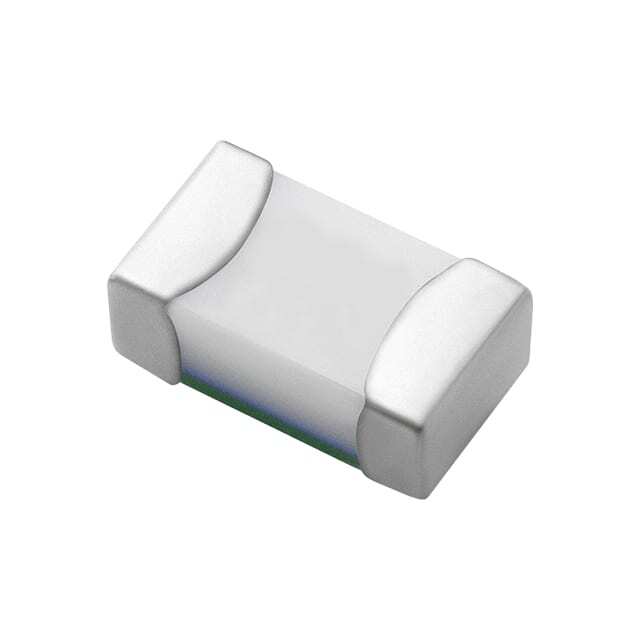

0438.500WRA

SKU: 142989

Manufacturer: Littelfuse

Fuse Chip Fast Acting 0.5A 63V SMD Solder Pad 0603 1.58 X 0.85 X 0.5mm Ceramic T/R Automotive CSA/cULus

1060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8536.10.00.40
Automotive	Yes
PPAP	Unknown
Type	Chip
Acting	Fast
Application	LED Head Light
Fuse Size (mm)	1.58 X 0.85 X 0.5
Current Rating (A)	0.5
Voltage Rating (V)	63
Maximum AC Voltage Rating (V)	32
Maximum DC Voltage Rating (V)	63
Maximum Power Dissipation (W)	0.243(Nom)
Breaking Capacity @ Rated Voltage (A)	50@32VAC
Typical Melting I2t (A²S)	0.01
Typical Cold Resistance (Ohm)	0.829
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Depth (mm)	0.85
Length (mm)	1.58
Height (mm)	0.5
Fuse Body Material	Ceramic
Terminal Form	Surface Mount
