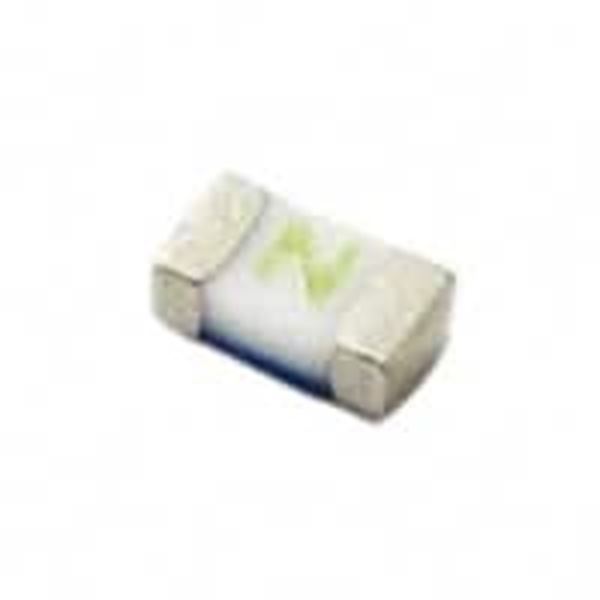

0438.375WR Littelfuse

0438.375WR

SKU: 121698

Manufacturer: Littelfuse

Fuse Chip Fast Acting 0.375A 32V SMD Solder Pad 0603 Ceramic T/R CSA/UL

Download sample

Request Free Samples

41010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	No
PPAP	No
Type	Chip
Acting	Fast
Application	Automotive Electronic
Fuse Size (mm)	1.54 X 0.85 X 0.5
Current Rating (A)	0.375
Voltage Rating (V)	32
Maximum DC Voltage Rating (V)	32
Maximum Power Dissipation (W)	0.183(Nom)
Typical Melting I2t (A²S)	0.0041
Typical Cold Resistance (Ohm)	1.247
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Depth (mm)	0.85
Length (mm)	1.54
Height (mm)	0.5
Fuse Body Material	Ceramic
Terminal Form	Surface Mount
