0438001.WRA

SKU: 36836

Manufacturer: Littelfuse

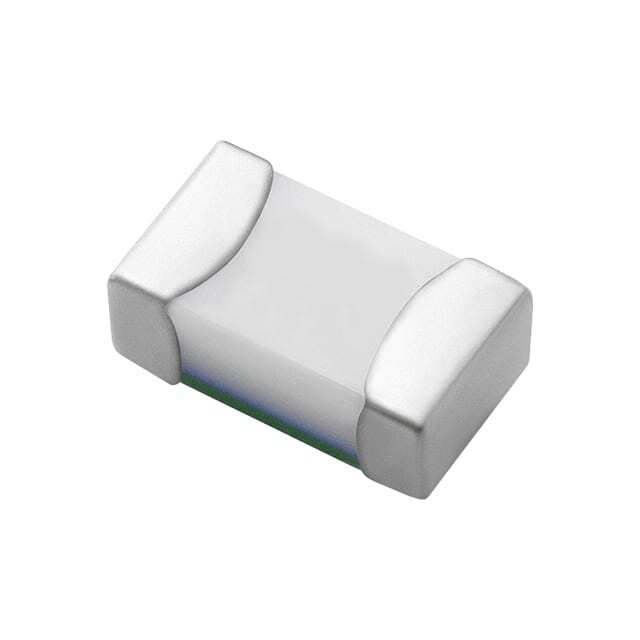

Fuse Chip Fast Acting 1A 32V SMD Solder Pad 0603 1.58 X 0.85 X 0.5mm Ceramic T/R Automotive CSA/cULus

3210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	Yes
PPAP	Unknown
Type	Chip
Acting	Fast
Application	Automotive Navigation System
Fuse Size (mm)	1.58 X 0.85 X 0.5
Current Rating (A)	1
Voltage Rating (V)	32
Maximum AC Voltage Rating (V)	32
Maximum DC Voltage Rating (V)	63
Maximum Power Dissipation (W)	0.351
Breaking Capacity @ Rated Voltage (A)	50@63VDC
Typical Melting I2t (A²S)	0.0593
Typical Cold Resistance (Ohm)	0.31
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Depth (mm)	0.85
Length (mm)	1.58
Height (mm)	0.5
Fuse Body Material	Ceramic
Terminal Form	Surface Mount
