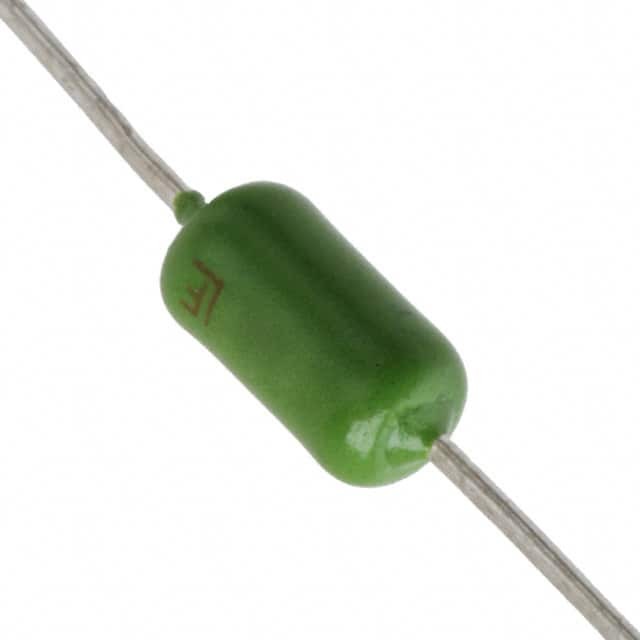

026303.5WRT1L

SKU: 7320

Manufacturer: Littelfuse

Fuse Subminiature Very Fast Acting 3.5A 250V Axial 3.68 X 7.62mm Solder T/R CSA/PSE/UL

1130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Subminiature
Acting	Very Fast
Application	Audio/Video
Fuse Size (mm)	3.68 X 7.62
Current Rating (A)	3.5
Voltage Rating (V)	250
Maximum AC Voltage Rating (V)	250
Breaking Capacity @ Rated Voltage (A)	50@250VAC
Typical Melting I2t (A²S)	2.33
Typical Cold Resistance (Ohm)	0.0224
Terminal Form	Axial
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	7.11
Product Diameter (mm)	3.94(Max)
Fuse Body Material	Solder
