023302.5MXEP

SKU: 15590

Manufacturer: Littelfuse

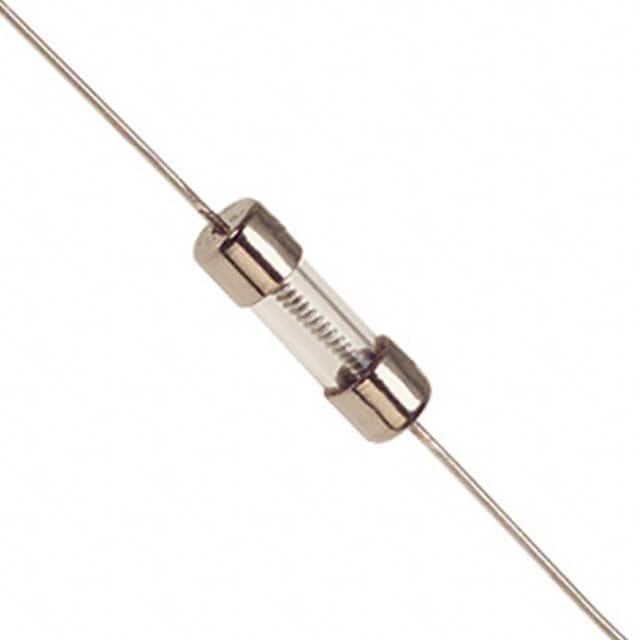

Fuse Miniature Medium Time Delay Acting 2.5A 125V Axial 5 X 20mm Glass Bulk CE/CSA/KC/PSE/UL

2280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Miniature
Acting	Medium Time Delay
Application	Supplementary Protection
Fuse Size (mm)	5 X 20
Current Rating (A)	2.5
Voltage Rating (V)	125
Maximum AC Voltage Rating (V)	125
Breaking Capacity @ Rated Voltage (A)	10000@125VAC
Typical Melting I2t (A²S)	17.045
Typical Cold Resistance (Ohm)	0.0521
Terminal Form	Axial
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Bulk
Length (mm)	22.5(Max)
Product Diameter (mm)	5.8(Max)
Fuse Body Material	Glass
