023001.5MRT1EP

SKU: 93255

Manufacturer: Littelfuse

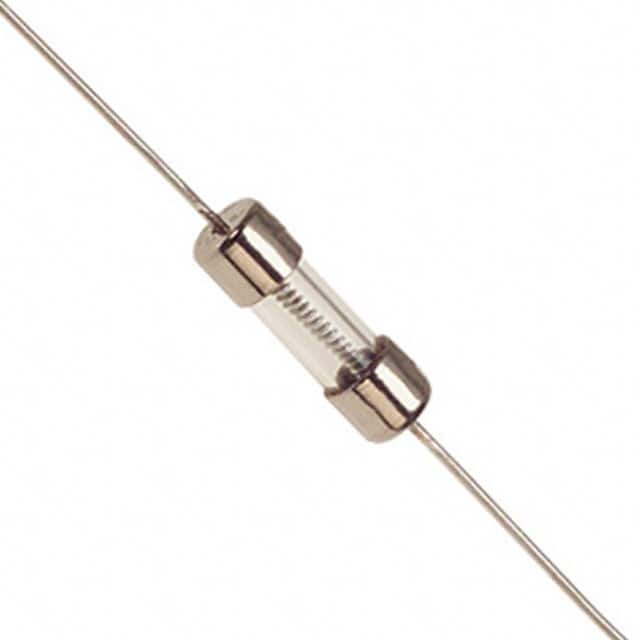

Fuse Subminiature Slow Blow Acting 1.5A 250V Axial 5 X 15mm Glass T/R CE/CSA/PSE/UL

1740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.20
Automotive	No
PPAP	No
Type	Subminiature
Acting	Slow Blow
Application	Telecom Industry
Fuse Size (mm)	5 X 15
Current Rating (A)	1.5
Voltage Rating (V)	250
Maximum AC Voltage Rating (V)	250
Maximum DC Voltage Rating (V)	125
Breaking Capacity @ Rated Voltage (A)	100@250VAC
Typical Melting I2t (A²S)	15
Typical Cold Resistance (Ohm)	0.1077
Terminal Form	Axial
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	14.9(Max)
Product Diameter (mm)	4.8(Max)
Fuse Body Material	Glass
