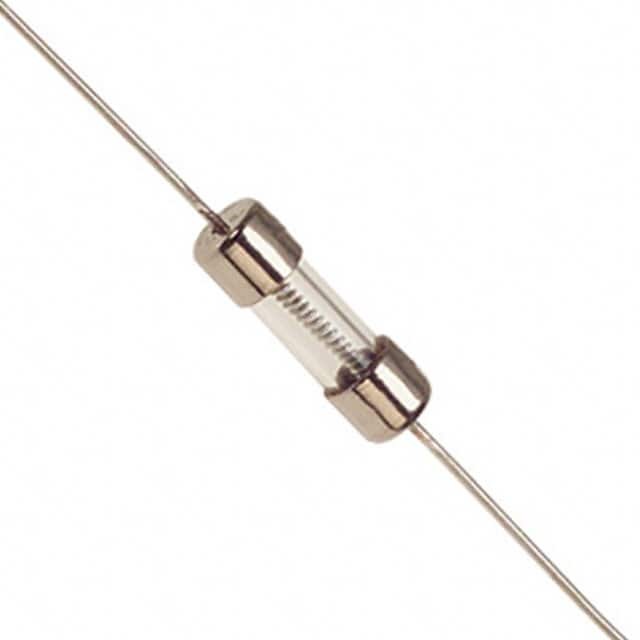

0230003.DRT1P Littelfuse

0230003.DRT1P

SKU: 6461

Manufacturer: Littelfuse

Fuse Subminiature Slow Blow Acting 3A 250V Axial 5 X 15mm Glass T/R CSA/UL

Download sample

Request Free Samples

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8536.10.00.40
Automotive	No
PPAP	No
Type	Subminiature
Acting	Slow Blow
Application	Telecom Industry
Fuse Size (mm)	5 X 15
Current Rating (A)	3
Voltage Rating (V)	250
Maximum AC Voltage Rating (V)	250
Maximum DC Voltage Rating (V)	125
Typical Melting I2t (A²S)	77
Typical Cold Resistance (Ohm)	0.0383
Terminal Form	Axial
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	14.9(Max)
Product Diameter (mm)	4.8(Max)
Fuse Body Material	Glass
