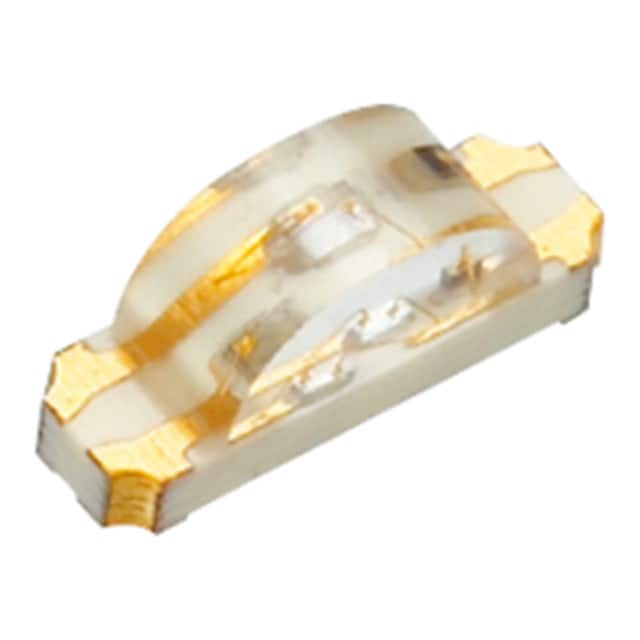

LTST-S310F2KT

SKU: 104959

Manufacturer: Lite-On Technology

LED Tri-Color 468nm/520nm/632nm 4-Pin Chip LED T/R

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Tri-Color
Product Category	Chip LED
Color	Blue/Green/Red
Number of LEDs	3
LED Body Material	InGaN
Lens Shape Type	Rectangular
Lens Dimensions (mm)	2x1x1
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	180mcd(Max)
Dominant Wavelength (nm)	470/525/624
Peak Wavelength (nm)	468/520/632
Viewing Angle (°)	130
Maximum Forward Current (mA)	20/20/30
Test Current (mA)	20
Maximum Forward Voltage (V)	3.8/3.8/2.4
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	80/80/75
Operating Temperature-Min	-20
Operating Temperature-Max	80
Lead Standoff	No
Supplier Color	Blue/Green/Red
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	Chip LED
Pin Count	4
Standard Package Method	Chip LED
Terminal Form	Surface Mount
Package Height	1.5
Package Length	3.2
Package Width	1
