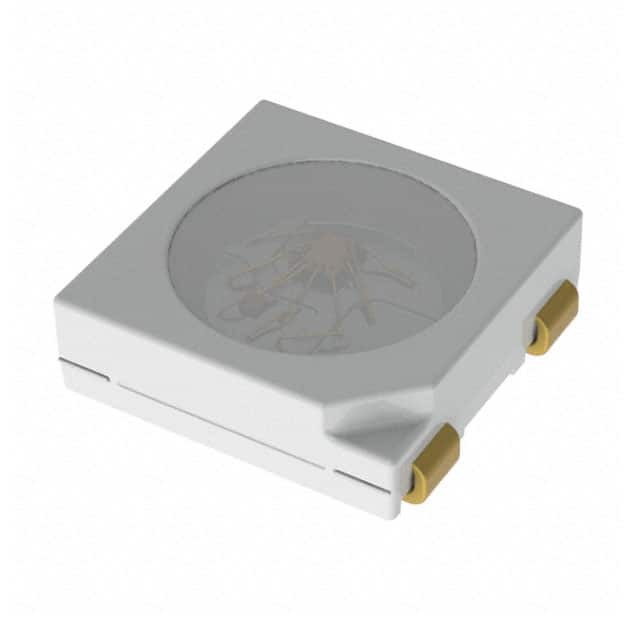

LTST-E563CEGBW Lite-On Technology

LTST-E563CEGBW

SKU: 66075

Manufacturer: Lite-On Technology

LED Tri-Color 4-Pin SMD T/R

Request Free Samples

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Tri-Color
Product Category	Chip LED
Color	Blue/Green/Red
Number of LEDs	1
LED Body Material	InGaN/InGaN/AlInGaP
Lens Shape Type	Circular
Lens Dimensions (mm)	3.4x3.4x1.57
Lens Appearance	White Diffused
Mounting Orientation	Top Mount
Intensity	224mcd(Max)
Dominant Wavelength (nm)	475(Max)/535(Max)/630(Max)
Viewing Angle (°)	120
Maximum Forward Current (mA)	19
Test Current (mA)	19
Maximum Forward Voltage (V)	5.5
Operating Temperature-Min	0
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Blue/Green/Red
High Power	Yes
High Brightness	Yes
Packing Method	Tape and Reel
Original Package	SMD
Pin Count	4
Terminal Form	Surface Mount
Package Length	5
Package Width	5
