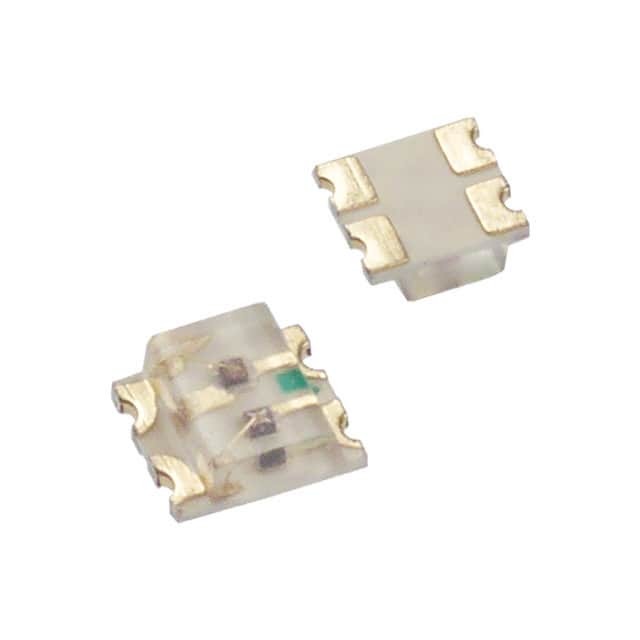

LTST-C195KGJRKT

SKU: 34304

Manufacturer: Lite-On Technology

LED Bi-Color Green/Red 574nm/639nm 4-Pin Chip LED T/R

93990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Bi-Color
Product Category	Chip LED
Color	Green/Red
Number of LEDs	2
LED Body Material	AlGaInP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.1x1.5x0.37
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	35mcd
Dominant Wavelength (nm)	571/631
Peak Wavelength (nm)	574/639
Viewing Angle (°)	130
Maximum Forward Current (mA)	30
Test Current (mA)	20
Maximum Forward Voltage (V)	2.4
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	75
Operating Temperature-Min	-55
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Green/Red
High Power	No
High Brightness	Yes
Packing Method	Tape and Reel
Pin Count	4
Standard Package Method	Chip LED
Original Package	Chip LED
Terminal Form	Surface Mount
Package Height	0.55
Package Length	1.5
Package Width	1.6
PCB changed	4
