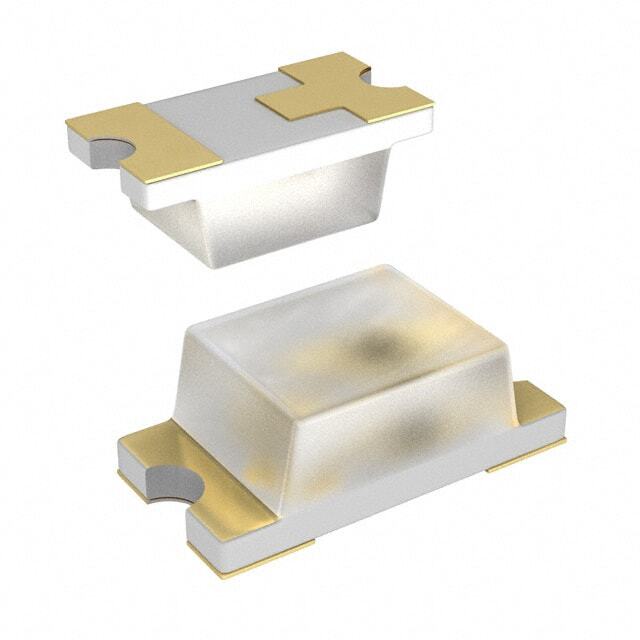

LTST-C191YKT

SKU: 52062

Manufacturer: Lite-On Technology

LED Uni-Color Yellow 585nm 2-Pin Chip LED T/R

2630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	Yellow
Number of LEDs	1
LED Body Material	GaAsP
Lens Shape Type	Rectangular
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	4.5mcd
Dominant Wavelength (nm)	588
Peak Wavelength (nm)	585
Viewing Angle (°)	130
Maximum Forward Current (mA)	20
Test Current (mA)	20
Maximum Forward Voltage (V)	2.6
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	60
Operating Temperature-Min	-55
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Yellow
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	Chip LED
Pin Count	2
Standard Package Method	Chip LED
Terminal Form	Surface Mount
Package Height	0.55
Package Length	1.6
Package Width	0.8
PCB changed	2
