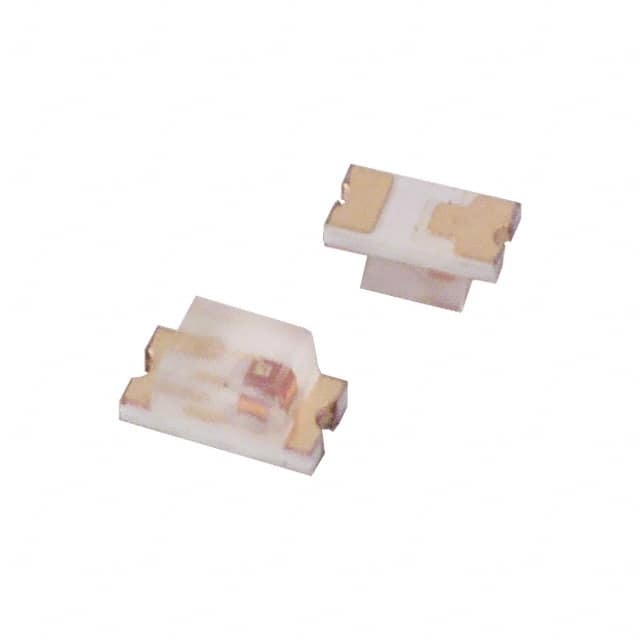

LTST-C190GKT

SKU: 119186

Manufacturer: Lite-On Technology

Green SMD LED utilizing GaP, an intensity of 18 mcd, 130˚ viewing angle, forward voltage of 2.6 V, and a maximum forward current of 30 mA

23950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	Green
Number of LEDs	1
LED Body Material	GaP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.1x0.8x0.52
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	18mcd(Max)
Dominant Wavelength (nm)	569
Peak Wavelength (nm)	565
Viewing Angle (°)	130
Maximum Forward Current (mA)	30
Test Current (mA)	10
Maximum Forward Voltage (V)	2.6
Reverse Voltage (V)	5
Minimum Forward Voltage (V)	1.6
Typical Forward Voltage (V)	2.1
Internal Protection	No
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-55
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Green
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	Chip LED
Original Package	Chip LED
Terminal Form	Surface Mount
Package Height	0.8
Package Length	1.6
Package Width	0.8
PCB changed	2
