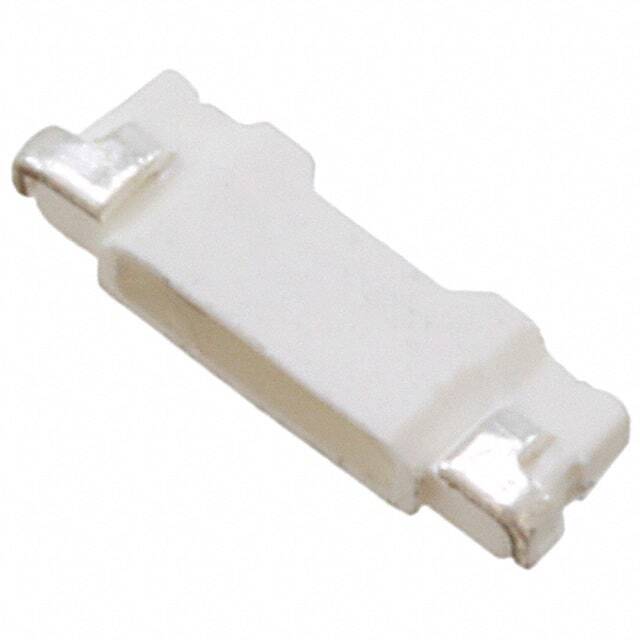

LTST-020ZGL

SKU: 73083

Manufacturer: Lite-On Technology

LED Uni-Color Green 525nm 2-Pin SMD T/R

2740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	Green
Number of LEDs	1
LED Body Material	InGaN
Lens Shape Type	Circular
Lens Appearance	Colorless
Mounting Orientation	Top Mount
Intensity	600mcd(Max)
Dominant Wavelength (nm)	535(Max)
Peak Wavelength (nm)	525
Viewing Angle (°)	110
Maximum Forward Current (mA)	20
Maximum Forward Voltage (V)	3.5
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	120
Operating Temperature-Min	-30
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Green
High Power	No
High Brightness	Yes
Packing Method	Tape and Reel
Original Package	SMD
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	0.6
Package Length	3.5
Package Width	1.2
