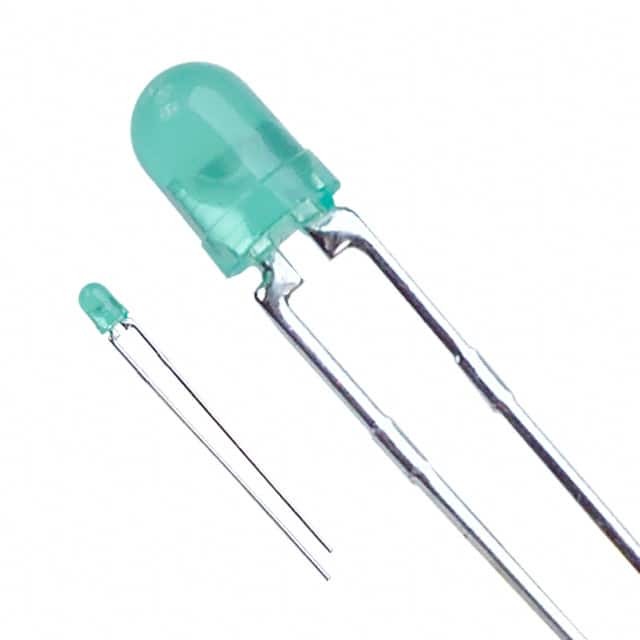

LTL-4231N

SKU: 30679

Manufacturer: Lite-On Technology

LED Uni-Color Green 565nm 2-Pin T-1 Tray

3420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Standard LED
Color	Green
Number of LEDs	1
Lens Shape Type	Circular
Lens Dimensions (mm)	2.9x2.9x2.5
Lens Appearance	Green Diffused
Mounting Orientation	Right Angle
Intensity	12.6mcd
Dominant Wavelength (nm)	569
Peak Wavelength (nm)	565
Viewing Angle (°)	60
Maximum Forward Current (mA)	30
Test Current (mA)	10
Maximum Forward Voltage (V)	2.6
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	120
Operating Temperature-Min	-55
Operating Temperature-Max	100
Lead Standoff	No
Supplier Color	Green
High Power	No
High Brightness	No
Packing Method	Tray
Original Package	T-1
Pin Count	2
Standard Package Method	T-1
Diameter	4.45
Terminal Form	Through Hole
Package Height	3.2
PCB changed	2
