LTL-1CHYE

SKU: 20112

Manufacturer: Lite-On Technology

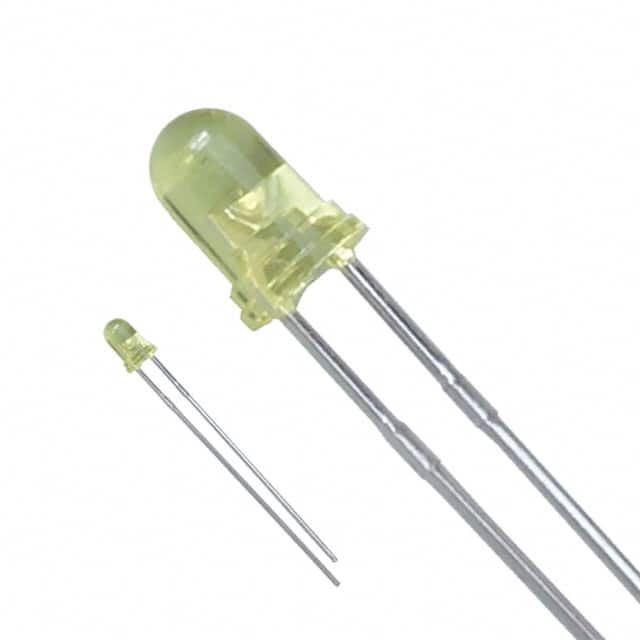

LED Uni-Color Yellow 585nm 2-Pin

1780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8541.40.20.00
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Standard LED
Color	Yellow
Number of LEDs	1
Lens Shape Type	Circular
Lens Dimensions (mm)	3.1x3.1x4.1
Lens Appearance	Colored Non Diffused
Mounting Orientation	Top Mount
Intensity	40mcd
Dominant Wavelength (nm)	590
Peak Wavelength (nm)	585
Viewing Angle (°)	45
Maximum Forward Current (mA)	20
Test Current (mA)	10
Maximum Forward Voltage (V)	2.6
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	60
Operating Temperature-Min	-55
Operating Temperature-Max	100
Lead Standoff	No
Supplier Color	Yellow
High Power	No
High Brightness	No
Pin Count	2
Diameter	3.8
Terminal Form	Through Hole
Package Height	5.2
PCB changed	2
