LTH-301-32

SKU: 30677

Manufacturer: Lite-On Technology

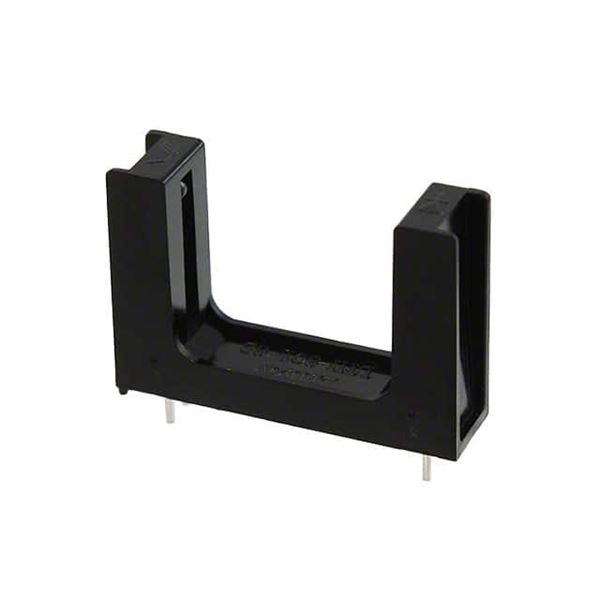

Photointerrupter Transmissive 15mm Phototransistor 4-Pin

3130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.70.80
Automotive	No
PPAP	No
Type	Transmissive
Number of Channels per Chip	1
Gap Width (mm)	15
Maximum Rise Time (ns)	15000
Maximum Fall Time (ns)	20000
Output Device	Phototransistor
Maximum Forward Current (mA)	60
Maximum Collector Current (mA)	20
Collector-Emitter Voltage-Max (V)	30
Maximum Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-25
Operating Temperature-Max	85
Pin Count	4
Terminal Form	Through Hole
Package Height	17.2
Package Length	24
Package Width	6.1
